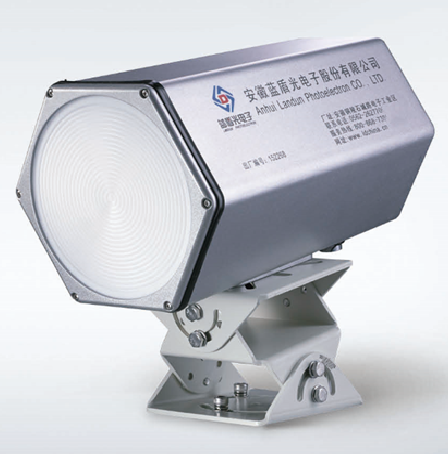

The 35G narrow beam speed measurement radar is characterized by a narrow beam, high gain, and low side lobes. The antenna aperture is slightly smaller than the hump type, and the antenna surface includes a dielectric lens. The microwave signal passes through different paths of the dielectric lens to reach the lens plane simultaneously and is emitted. The lens plane has concentric grooves that match the wavelength, resulting in a low standing wave ratio. It is suitable for traffic information detection equipment on highways, security checkpoints, and other roads.

Main Features:

- High stability 8mm wave oscillator: The core component of radar speed measurement equipment, featuring good directionality, small size, and rich information, meeting national radar speed measurement frequency standards.

- Dual-channel microstrip balanced mixer: Effectively solves the accurate recognition of vehicle travel directions, especially in mixed lanes, ensuring the accuracy of vehicle speed detection and capture.

- Multi-target signal recognition: Establishes a mathematical model for fixed-angle moving vehicles, accurately extracting multiple target signals, ensuring the uniqueness of measurement, capture, and monitoring data.

- Wider beam angle increases vehicle capture rate: The beam angle is about 5.5°, effectively improving the vehicle capture rate.

- Easier installation structure: Adopts an integrated structure design, enhancing the device's waterproof capability.
